زانغجياغانغ جيايوان الماكينات والشركة المحدودة
المهنية المشروبات السائل ملء وتعبئة الآلات المصنعة
|
تفاصيل المنتج:
شروط الدفع والشحن:
|
China
| Application: | Beverage, Soft Drinks | Automatic Grade: | Automatic |
|---|---|---|---|
| Material: | Stainless Steel | Power: | 0.75kw |
| Product name: | CO2 Generator | Purity: | 99% |
| تسليط الضوء: | beverage manufacturing equipment,beverage making machine,beverage making machine |
||

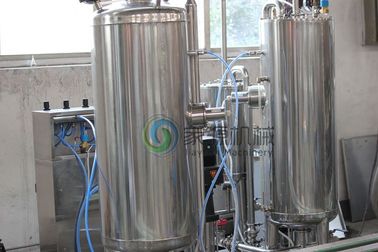

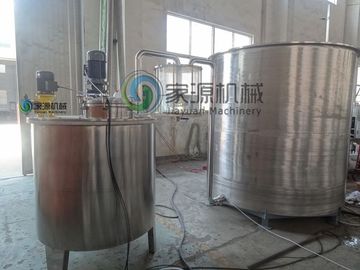

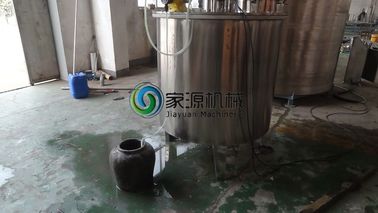

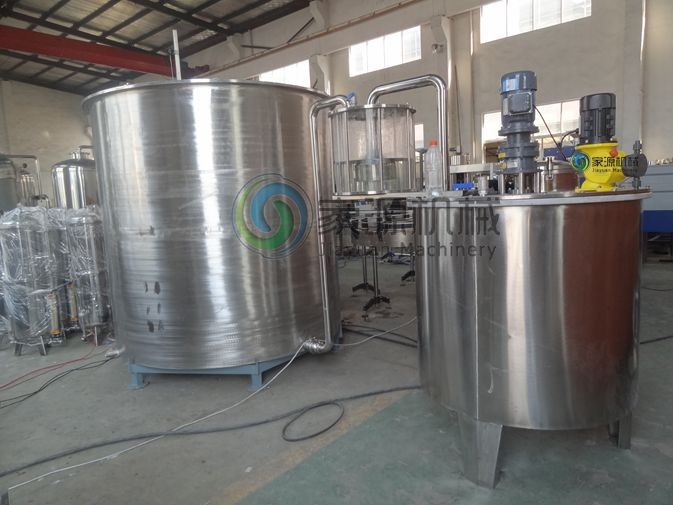

0.75kw CO2 Generator Equipment 99% For Carbonated Soft Drinks
Quick Detail:
Carbon dioxide production line
Co2 producing and purifyng machine
CO2 generator equipment can very quickly get
Description:
CO2 generator equipment can very quickly get CO2;
Provide for carbonated drinks production Line.
This equipment is suitable for middle-small type of carbonated drinks Factory.
|
NaHCO3 |
purity≥99% max feeding capacity:150kg/time |
|
concentrated sulphuric |
purity≥98% max feeding capacity90kg/time |
|
CO2 Production |
purity≥99% normal conditions Max39.6m3 |
|
pressure of Compressed gas (adjustable) |
6-7kg/cm2 |
|
Sulfuric acid cylinder total volume |
60lts |
|
Reactor |
total volume :300lts (straight ), operating pressure(MPa): normal pressure, operating temperature: <80°C |
|
mixer |
power:0.75kw, mixing speed:16.66 rpm, ReducerModel:BLY12-87-0.75 |
|
diaphragm metering pump(adjustable) |
power supply:~380V(three phase), operating pressure(MPa):0.3~1.0 Mpa |
|
air compressor |
volume:0.22m3/minute, pressure:0.7MPa |
|
Gas purification unit |
Operating pressure(MPa):0.8MPa, operating temperature:<50°C, measurement range of Flowmeter:0.6~6 m3/h(gas) |
|
whole power |
3.20kw |
|
Appearance size(mm) |
5800×1800×2500mm |
