Glass Bottle Shrink Packing Machine

ممارسات التجارية المشروعة خدمة
أرسلتني المتأخّر منتوج إنذار.
(ما من spam - لم يبع نحن أو شارك عنوان البريدك.)

Glass Bottle Shrink Packing Machine

الصين Glass Bottle Shrink Packing Machine المزود
Glass Bottle Shrink Packing Machine المزود Glass Bottle Shrink Packing Machine المزود Glass Bottle Shrink Packing Machine المزود Glass Bottle Shrink Packing Machine المزود

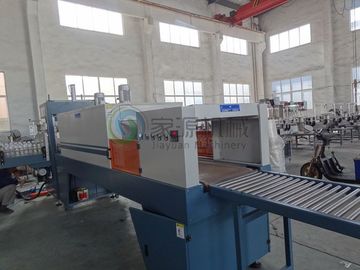

صورة كبيرة :  Glass Bottle Shrink Packing Machine

تفاصيل المنتج:

Place of Origin: China Mainland
اسم العلامة التجارية: Jiayuan
إصدار الشهادات: CE,SGS
Model Number: WD –S350

شروط الدفع والشحن:

Minimum Order Quantity: 1 set
الأسعار: Negotiation
Packaging Details: Seaworthy Wooden Case
Delivery Time: 30 days
Payment Terms: T/T; L/C
Supply Ability: 5 sets/month
Verified Supplier

China Mainland

  • Product Details
مفصلة وصف المنتج
Automatic Grade: Auto Bottle Type: Round Bottle, Flat Bottle, Glass bottle
Capacity: 15000BPH Driven Type: PLC, Ectric
Power: 15Kw Product name: Shrink Packing Machine
Shrinkage film material: PE, PVC, POF
تسليط الضوء:

Wrap Around Packer,Wrapping Packing Machine

,

Wrapping Packing Machine



15000BPH Glass Bottle Shrink Packing Machine , Bottled Water Plants



Quick Detail:



1. Product: Glass bottle shrink packing plant

2. Model:WD-150A

3. Main Material: SS304

4. Production capacity: 15000bph(500ml)

5. Usage: Packing machine

6. Warranty: 1year free

Glass bottle shrink packing plant





Description:



Applicable Bottle Types:

This automatic shrink labeling machine n be used for various kind of bottle types, for example : round bottle, square bottle,flat bottle, curved bottle and cup-shaped, etc.

Electrical Appliance Configuration Specification

It adopts PLC programmable controller, imported servo motor, servodriver, frequency converter and sducer,besides, it adopts the positioning module  to ensure casting label precise, rapid and stable.



Facility character



Glass bottle shrink packing plant

1) Technical parameter

Facility typeWD-150A type

Facility external sizeL5050×W3300×H2100mm

wrap page max sizeL600×W400×H350mm

Shrinkage film size PE PVC POF

Shrinkage thermo thickness0.03-0.15mm

Thermo shrinkage tunnel temperature: 160 - 260°can adjust at will.

Max output per minute8-12bag

Facility power18Kw

Actual power15Kw/hr

Pressure requirement380/220V

Facility weight1.2T

Fan machine1.1Kw 2set 380V, 65W 4set 380V



2) Technical condition and requirement:



1package type

(1)350/500/550/600ML big bag4×6, 4×5; small bag3×4, 3×5 four type of package.

(2)1L1.5L2L2.5L big bag3×3, 3×4; small bag2×2, 2×3 four type of package

2Regarding can, we suggest adopt to package with tray, pack steadily.

3package speed815bagmin

4meet with pre-treatment filling speed of filling machine.

(1) 350/500/550/600ML big bag4×6,4×5,(1200015000bhrsmall bag3×5,3×4,(800010000bhr.

(2)1L1.5L2L big bag3×4, 3×3(50006000b small bag2×3, 2×230004000bhr.

5package materialPE thermo shrinkage film width200600mm, thickness0.080.12mm

External Dimenssion

L5050*W3300*H2200

The overall size of packaging machinery

Main Machine

L1180*W1080*H2370

thermo-wind Stove

L3890*W1050*H2040

Cabinet

L1250*W780*H1100

Total Weight

1.2t

The dimension of hot thermo-wind stove

L3700*W920*H1800

Max.Packing Size

L600*W400*H350

Packing Speed

8-15 Packet

The speed of Conveyor

920Adjustable 200

Working Power

380V 20KW

Working Pressure

0.6-0.8Mpa

Total Power

20kw

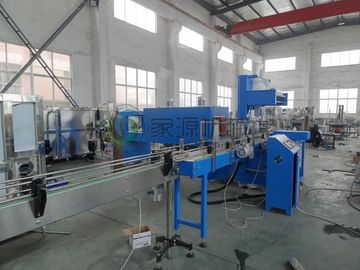

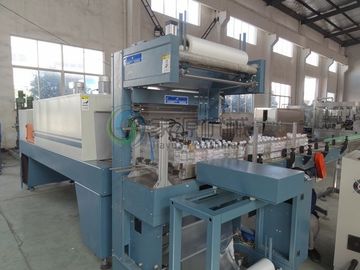

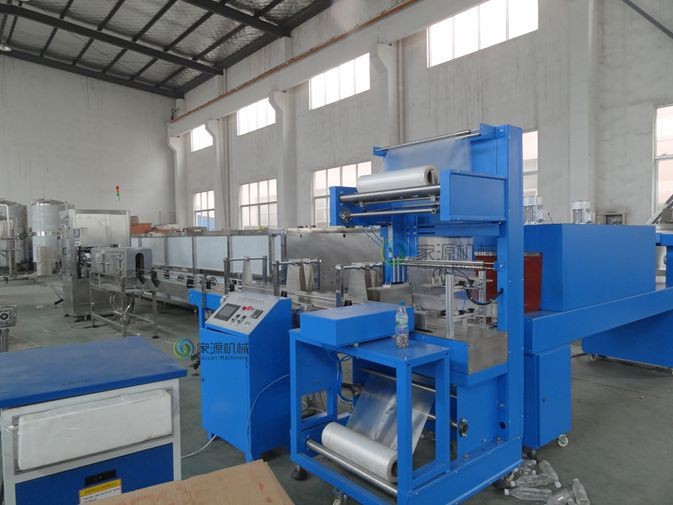

Glass Bottle Shrink Packing Machine 0Glass Bottle Shrink Packing Machine 1Glass Bottle Shrink Packing Machine 2Glass Bottle Shrink Packing Machine 3





 Competitive Advantage:



Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

  1. Bottled water production line
  2. Carbonated soft drinks production line
  3. Hot-fill juice and tea production line
  4. 5 Gallon bottled water production line
  5. Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
