Automatic Shrink Labeling Machine

صورة كبيرة : Automatic Shrink Labeling Machine

تفاصيل المنتج:

Place of Origin:	China Mainland
اسم العلامة التجارية:	Jiayuan
إصدار الشهادات:	CE,SGS
Model Number:	WD –S350

شروط الدفع والشحن:

Minimum Order Quantity:	1 set
الأسعار:	Negotiation
Packaging Details:	Seaworthy Wooden Case
Delivery Time:	40 days
Payment Terms:	T/T; L/C
Supply Ability:	5 sets/month

اتصل

Verified Supplier

China Mainland

Product Details

مفصلة وصف المنتج

Applied Material:	PVC, PET, OPS	Automatic Grade:	Auto
Bottle type:	PET, Round Bottle, Flat Bottle	capacity:	20000bph
Driven Type:	Electric	Product name:	Shrink Labeling Machine
تسليط الضوء:	shrink sleeve labeling machine,bottle labeling machine , bottle labeling machine

Full Automatic Shrink Labeling Machine 20000bph For Condiment

Quick Detail:

1. Product: Full automatic double sides labeling machine
2. Model:WD –S350
3. Main Material: SS304
4. Production capacity: 20000bph(500ml)
5. Usage: Labeling machine
6. Warranty: 1year free

Full automatic double sides labeling machine

Description:

Full automatic double sides labeling machine

1. The Scope of Application

Label the front and back sides of different kinds of objects.

2. Device Characteristic:

Adopt mature technology PLC control system, operation is stable and high-speed

Using touch-screen control operating system, simple, practical, efficient;

Upgraded disc label station design, can label conical and flask bottle.

Screw adjustment to suppress body movements accurately

Synchronization chain mechanism ensures labeling smooth and precise calibration.

Advanced technology of pneumatic coding system, print the batch number and expiry clearly.

Transmission-type rolling bottles make sure the labels attached more firmly;

Labeling transparent label without bubble and self-adhesive label without wrinkle;

Butterfly designed station; the angle of machine can be adjusted to adapt the bottle's shape

3. Technical parameter

Model	DLM-A
Driving Mode	Servo Motor
Operating direction	Right/Left
Production(pcs/min)	50-180(subject to the size of objects and labels)
Conveyor speed(meter/min)	≤40
Labeling accuracy	±1.0mm(subject to the roughness of the plane)
The application label	Adhesive sticker, transparent or opaque
The inner diameter of laebl rolll(mm)	76mm
The outer diameter of label roll (mm)	350mm(max)
The application size of label	Width 15-140mm, length15-300mm
The application size of bottle	The machine can customized as label objects
Weight(kg)	220
Power(w)	1000W
Voltage	AC 110V/220V 50/60HZ
The appearance of machine(mm)	2400(L) 1350(W) 1500(H)mm

4. Main Electrical Configuration Table

No	Name	Model	Unit	Brand
1	PLC control system	6ES7214-1A	1 set	SIEMENS
2	Touch-screen man-machine interface	6AV6648-01A	1 piece	SIEMENS
3	Inverter	22F-A2P5N103	1 piece	Delta
4	photoelectric sensor (check label objects)	FS-N18N	1Set	Japan KEYENCE
5	Photoelectric sensor (check opaque label)	GS61	2 sets	German Leuze
6	Main transport motor	370W1:30	1 piece	Switzerland ABB
7	Sent label servo motor	2004-RZ08BAIAN3	2 sets	America AB
8	Drive	2003-CSD3-08BX2	2 sets	America AB
9	Separate Bottle Motor	40W 1:30	2sets	German JSCC

Applicable Bottle Types

Various kinds of bottle types, for example; round bottle, square bottle, flat bottle, curved bottle and cup-oshaped,

etc.

Pictures:

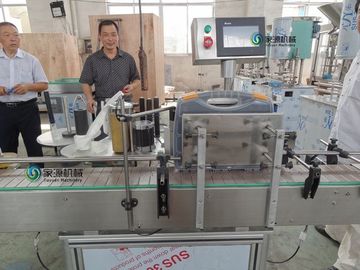

Automatic Shrink Labeling Machine 0

Competitive Advantage:

Jiayuan machinery co.,ltd is a professional manufacture of liquid packaging equipment.

1. The company around 110 KM away from Shanghai, has convenient traffic.

2. The company was established in 1999, has rich experience.

3. We are an CE&SGS certified company.

4. We can produce kind of filling&packing machine, such as

Bottled water production line
Carbonated soft drinks production line
Hot-fill juice and tea production line
5 Gallon bottled water production line
Water treatment machine and packing machine

5. Jiayuan machinery co.,ltd can provide turn-key services for customers, from plant layout, equipment manufacturing, production line setup and operators training.
