Glass Bottle Beer Pasteurization

ممارسات التجارية المشروعة خدمة
أرسلتني المتأخّر منتوج إنذار.
(ما من spam - لم يبع نحن أو شارك عنوان البريدك.)

Glass Bottle Beer Pasteurization

الصين Glass Bottle Beer Pasteurization المزود
Glass Bottle Beer Pasteurization المزود Glass Bottle Beer Pasteurization المزود Glass Bottle Beer Pasteurization المزود Glass Bottle Beer Pasteurization المزود

صورة كبيرة :  Glass Bottle Beer Pasteurization

تفاصيل المنتج:

Place of Origin: China
اسم العلامة التجارية: Jiayuan
إصدار الشهادات: CE&SGS
Model Number: QHS-3000

شروط الدفع والشحن:

Minimum Order Quantity: 1 set
الأسعار: Negotiation
Packaging Details: Wooden box
Delivery Time: 20 days
Payment Terms: T/T L/C
Supply Ability: 3 sets
Verified Supplier

China

  • Product Details
مفصلة وصف المنتج
Application: Juice, Beverage Bottle: Glass Bottle
Capacity: 3000 - 10000 BPH Material: Stainless Steel
Pressure: 0.5-0.6 Mpa Product name: Beer Pasteurization
تسليط الضوء:

beverage production equipment,beverage making machine

,

beverage making machine


Glass Bottle Beer Pasteurization 3000 - 10000 BPH Beverage Auxiliary Equipment

Quick Detail:

1. Capacity: 3000-10000BPH
2. Pasteurizer
3. Glass Bottle Beer
4. Total 5 temperature sections


Description:

Principal features
This machine has 5 temperature sections; temperature difference between sections is small.
It could assure good sterilizing effects, reduce bottle broken rate.
Hot water is recycled to use in temperature sections in order to save heat energy and reduce water consumption.
This machine could process bottled beverage or beer products, which completely conforms to relevant technologic requirements.


Specifications:


Principal parameter

Model

BP-3000

BP-6000

BP-10000

Production capacity

2000-3000(b/h)

4000-6000(b/h)

8000-10000(b/h)

Bottle inlet temp

5-10°C

Bottle outlet temp

<45°C

Sterilizing stamp

62-63°C

Sterilizing unit

15-20 PU

Steam pressure

0.5-0.6 Mpa

Width of belt(m)

1.22

1.5

1.5

Circling water(m3/h)

10

20

40

Water consumption

1(m3/h)

1.5(m3/h)

2(m3/h)

Steam consumption

200kg

350kg

600kg

Outer size(mm)

8000×1500×1850

1100×1800×1850

15600×1800×1850

Weight (kg)

4800

7200

9600

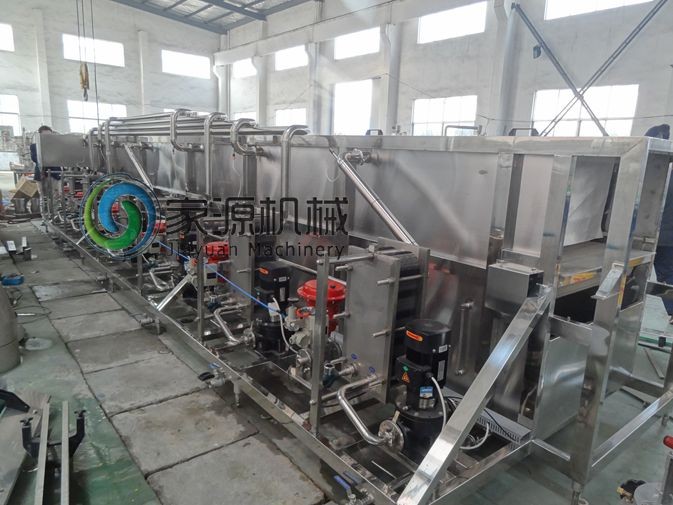

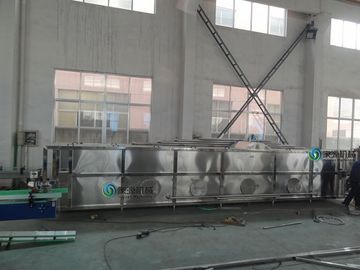

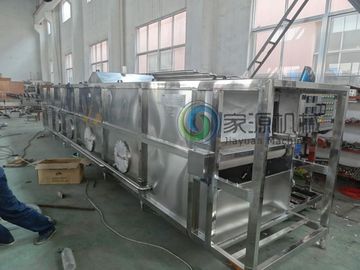

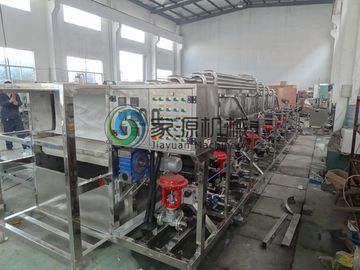

Glass Bottle Beer Pasteurization 0Glass Bottle Beer Pasteurization 1Glass Bottle Beer Pasteurization 2
