التلقائي آلة تعبئة البيرة على نطاق صغير

الصين التلقائي آلة تعبئة البيرة على نطاق صغير المزود
التلقائي آلة تعبئة البيرة على نطاق صغير المزود التلقائي آلة تعبئة البيرة على نطاق صغير المزود التلقائي آلة تعبئة البيرة على نطاق صغير المزود التلقائي آلة تعبئة البيرة على نطاق صغير المزود التلقائي آلة تعبئة البيرة على نطاق صغير المزود

صورة كبيرة :  التلقائي آلة تعبئة البيرة على نطاق صغير

تفاصيل المنتج:

Place of Origin: Jiangsu, China (Mainland)
اسم العلامة التجارية: Jiayuan
إصدار الشهادات: CE ISO SGS
Model Number: QS-12 DY-12 YG-6

شروط الدفع والشحن:

Minimum Order Quantity: 1 Set/Sets
الأسعار: $6,000-20,000 / Set
Packaging Details: Plastic film wrapping,wooden boxes packaging
Delivery Time: 30 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Set/Sets per Month
Verified Supplier

Jiangsu, China (Mainland)

  • Product Details
مفصلة وصف المنتج
سعة: 2000 زجاجة في الساعة Dimension(L*W*H): 1100 * 1050 * 1800mm
قوة: 1.1kw زجاجة نوع: PET زجاجة من البلاستيك والزجاج
تعبئة مادة: سائل الغاز وظيفة: غسل زجاجة ملء السد
اللون: gray فضّيّ وزن: 1600kg
تسليط الضوء:

آلة تعبئة الزجاج

,

زجاجة حشو الزجاج



Automatic small scale beer bottling machine



glass bottle filling machine SS304


Specifications:
Automatic small scale beer bottling machine glass bottle filling machine SS304
1.Model:QS-12 DY-12 YG-6
2.beer filling machine
3.beer bottling machine,beer bottle filling machine,
4.glass bottle filling machine,automatic filling machine

Introduction:
Automatic small scale beer bottling machine glass bottle filling machine SS304
QS-12 DY-12 YG-6 machine includes QS automatic washer,DY balanced pressure filler,FXZ cap turning machine,SSJ carrying machine ect.The key parts are made of stainless steel,with the features of reasonable stucture,advanced technology,easy in operation,widely used,etc,it's the ideal machine for middle and small beverage factory

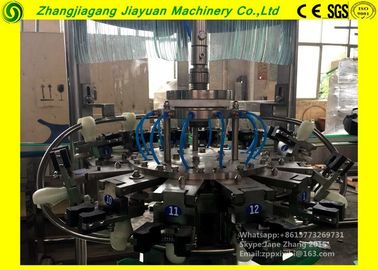

QS-12 Rotary Bottle Washer
1.Adopt 1990s' technology of West Geramny SEN corp,also combining the condition of our country.
2.It has high efficiency and good washing result by adopting continuously spraying and washing method.
3.It is mainly used to clean the plastic glass bottles of beverage.
التلقائي آلة تعبئة البيرة على نطاق صغير 0

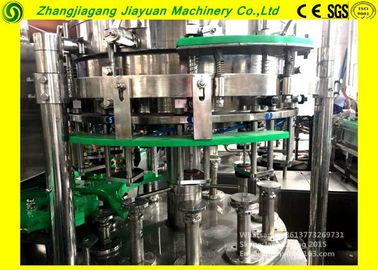

DY-12 Balanced Pressure Filller
1.The filler is developed on the basis of digesting and absorbing advanced technology introducing from abroad and with international advanced level.
2.It is mainly usde for filling gas-containing drinks,such as aerated water,cola,sparkling wine,fruit tea and so on,It is advanced in construction,steadly in performance,safe in operation,easy in maintenance high in production effciency,and the speed can be regulated infinitively.
3.The filler is the ideal choice for drink factories of small and middle type.
التلقائي آلة تعبئة البيرة على نطاق صغير 1

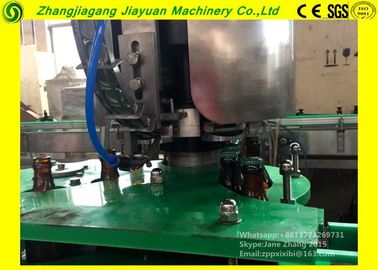

YG-6 Automatic Capper
The capper is the automatic capping and sealing equipment for bottled aerated water,sparkling wine,juice,health drink,soy sauce,vinegar and wine,production enterprises.
التلقائي آلة تعبئة البيرة على نطاق صغير 2

Main technical parameter

Model QS-12 DY-12 YG-6
Production capacity 2000BPH
Number of washing head 12
Number of filling head 12
Number of capping head 6
Diameter of bottle 62-100mm
Height of bottle 160-320mm
Bottle volume 250,375,500,625ml
Bottle/can type glass bottle,PVC bottle,POP-top can
Filling pressure 0.2-0.3Mpa
Filling temperature 2-6.C
Cap type crown type
Power 1.5kw


Other related parts

Conveyor
التلقائي آلة تعبئة البيرة على نطاق صغير 3

Floating ball(used for liquid level testing)
التلقائي آلة تعبئة البيرة على نطاق صغير 4

Washing and filling part on-off controller
التلقائي آلة تعبئة البيرة على نطاق صغير 5التلقائي آلة تعبئة البيرة على نطاق صغير 6

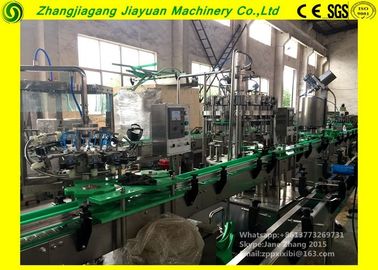

Our two workshop

التلقائي آلة تعبئة البيرة على نطاق صغير 7



Packing&Shipping

التلقائي آلة تعبئة البيرة على نطاق صغير 8



Payment

30% deposit against the contract by T/T should be paid before the order;

70% balance should be paid off by T/T after inspection before delivery;

Delivery time

30 days after received the down payment;

Training

Against the requests of the Buyer, the Seller’s technician could train the Buyer’s operators in the Buyer’s factory in the periods of installing & adjusting;



Company Information

التلقائي آلة تعبئة البيرة على نطاق صغير 9
Jiayuan company was established in1997,and for years we have been focusing on the improvement in machinery theory and performance in the food machinery industry.we have such as CE,ISO etc certification.
We can provide our customer with the machines as following:
1.Water bottle filling machine/whole production line
2.Juice filling machine/whole production line
3.Carbonated drink filling machine/whole production line
4.Small scale beverage filling machine/production line(Such as water,juice,soda water,cola,beer...)
5.1-5 gallon water barrel filling machine/production line
6.Glass bottle filling machine
7.Can filling machine
8.Water treatment system/water purifying machines
9.Juice or carboanted drink mixing system.
10.End-of-line packaging machines

If you're satisfied with our machines,and want to get the detailed informations,please leave the information of your bottle size,your capacity,then contact me by following ways:
التلقائي آلة تعبئة البيرة على نطاق صغير 10
